Universal Testing Systems - Servo Hydraulic Universal Test Systems

Servo Hydraulic Test Machines - Single Test Space

CODE: BMT-S Series Category: Servo Hydraulic Universal Test Systems

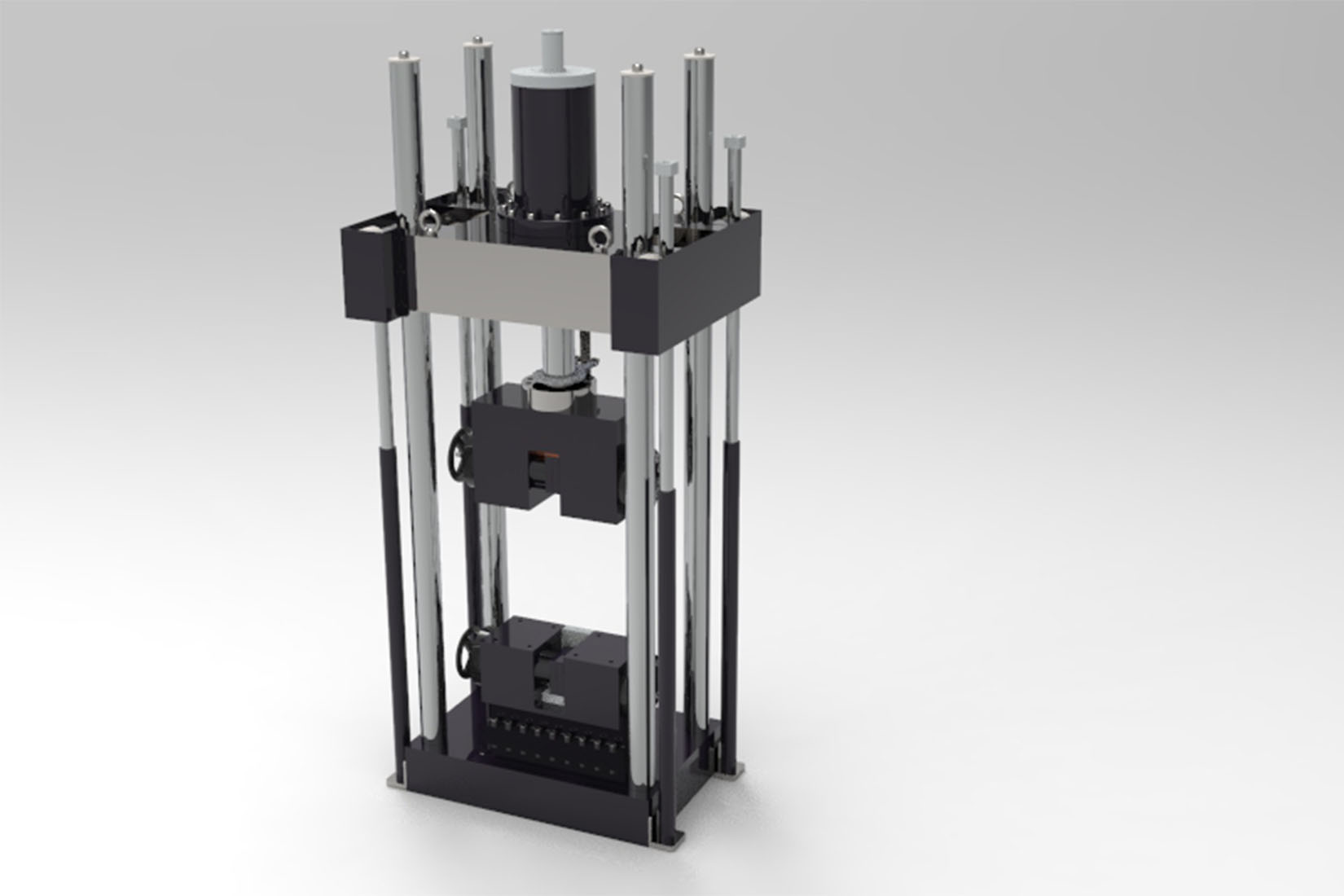

BESMAK® BMT-S series Universal Testing Machine, designed with a rigid frame in Column type construction and single workspace. Load measurement is made by a Load Cell. It is suitable for testing long samples or the samples having high strain capacity with its long-range piston stoke. BMT-S series UTM conform to many international standards, including (but not limited to):

ASTM A370, A615, C39, C109, E4, E8, E9, E290, F606

ISO 6892-1, 6892-2, 7438, 7500-1, 9513, 15630-1

BS 4449

EN10002-1, 10002-2

JIS Z2241, Z2248 (Contact us for additional compliance information )

Up to 2000 kN axial force capacity according to customers or/and test application requirement
Special Electro-magnetic displacement sensor accurately measures actuator travel at the center of the load string
An ideal system for testing common sized specimen with non-adjustable crosshead design
Convenient working height and ergonomic controls improve operator productivity and comfort
Long-stroke, high-speed actuator is well-suited for tension applications requiring repetitive testing of similar-sized specimens
Anti-rotation system prevents the actuator from rotating during test stroke
Choice of hydraulic configuration and machine performance to suit application
